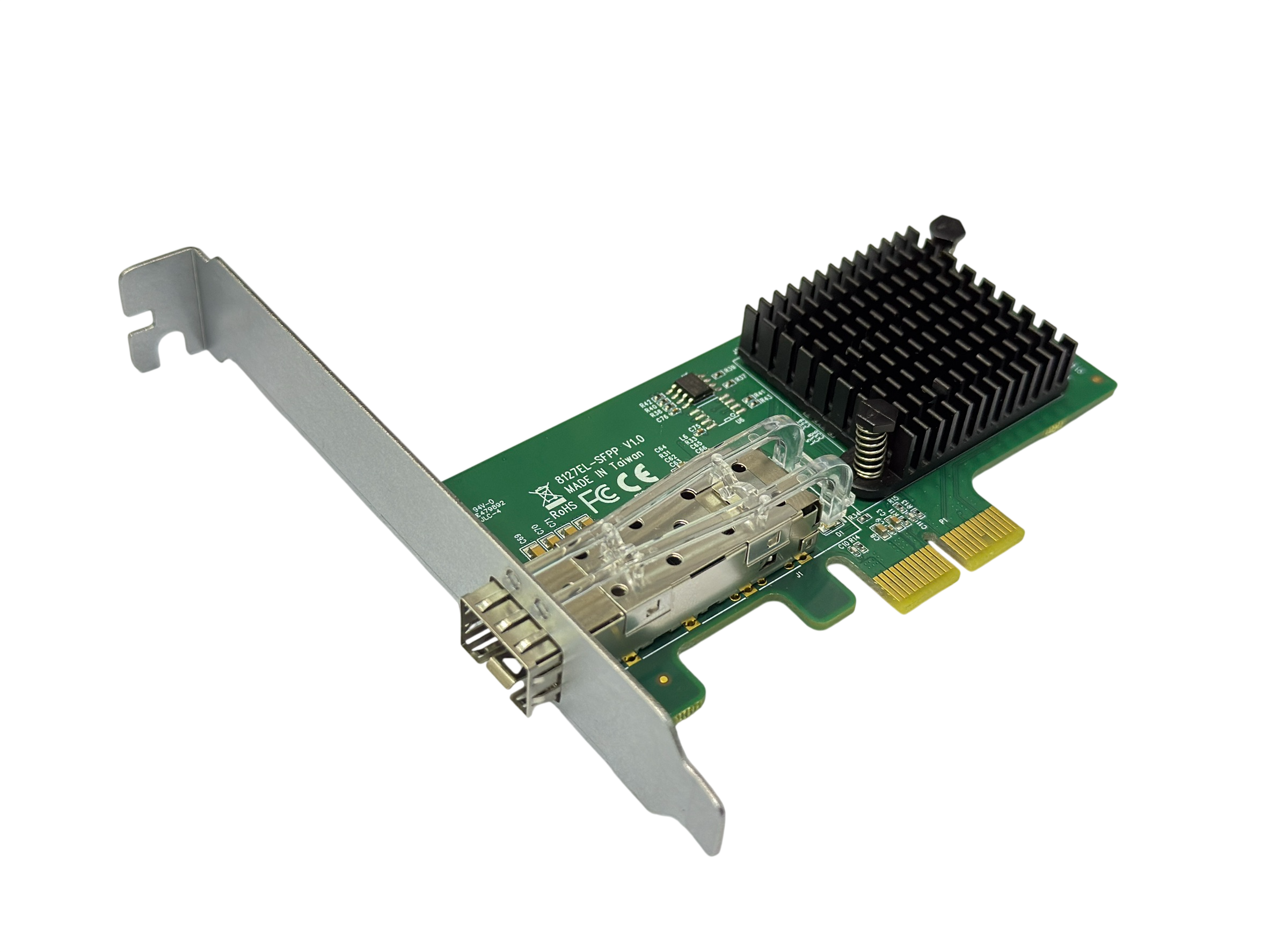

10G SFP+ PCIe Network Card, Realtek – RTL8127ATF, TAA-Compliant

EMT SKU# MP8127EL-SFPP

Product Overview

8127EL-SFPP is a 1-port 10G SFP+ PCIe network card designed for high-speed fiber Ethernet deployment in workstations, servers, industrial PCs, and OEM systems. With support for compatible SFP+ optical transceivers, it provides a practical 10GbE upgrade path for systems requiring long-distance, low-latency, or electrically isolated network connectivity.

Key Features

• Integrated 1000BASE-X and 10GBASE-R 802.3 compatible transceiver that supports SERDES(Fiber)
• Supports Wake-On-LAN (WoL) and RealWoW
• Supports legacy PXE (minimum support) and EFI PXE
• Compliant with the following IEEE standards: IEEE 802.3, IEEE 802.3z
• Compatible IEEE 802.1P Layer 2 Priority Encoding.
• Support IEEE 802.3ae(10GBase-R).
• Supports IEEE 802.1Q VLAN tagging.
• Supports IEEE 802.1ad Double VLAN.
• Supports Full Duplex flow control (IEEE 802.3x).
• PCIe 3.0 Base Specification, Bus width x2.
