USB 3.2 Gen 2x1 PCIe Card, 10Gbps Type-A + Type-C

USB 3.2 Gen 2×1 PCIe Card, 10Gbps Type-A + Type-C

EMT SKU# MP3142EL-AC

Product Overview

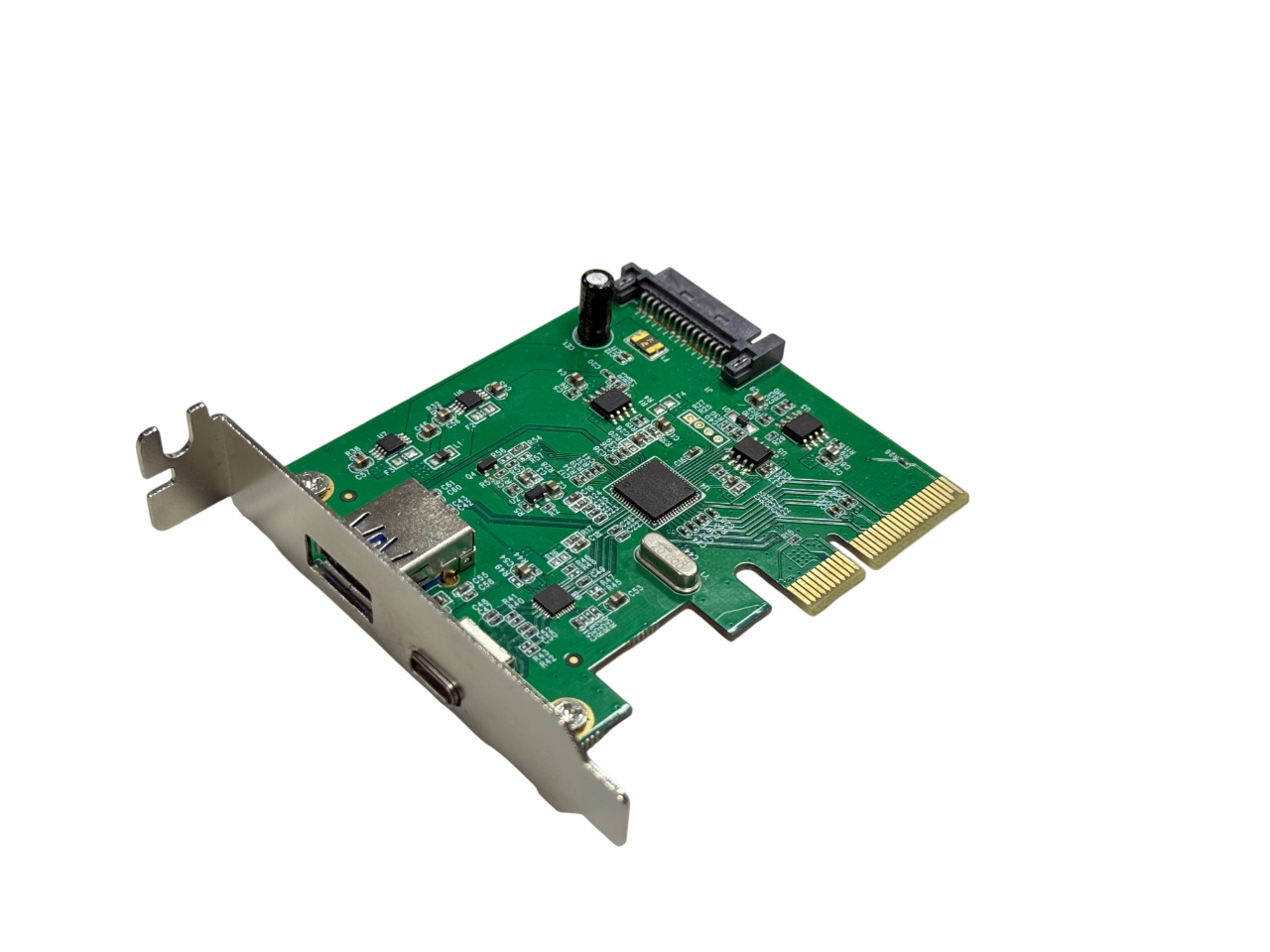

The 3142EL-CE is a 2-port USB 3.2 Gen 2×1 PCIe expansion card designed to add high-speed 10Gbps USB connectivity to workstations, industrial PCs, embedded systems, and OEM platforms. With Type-A and Type-C interfaces, PCI Express Gen 3 x4 support, inbox drivers for Windows and Linux, and low-latency performance, it is suitable for high-speed storage, front-panel USB-C expansion, machine vision, and professional data transfer applications.

Key Features

  • Cost-effective backward compatibility.
  • Support in box driver of Microsoft® Windows and various Linux kernels
  • Support PCI Express Gen-III x2
  • Support high bandwidth performance with low latency
  • Support PCI Express Link power management
  • Compliant with PCI Express Base 3.0 Specification
  • Up to USB3.2 Gen-II 10Gbps
  • Support overcurrent detection
  • Support Remote/Wakeup event
  • Backward compatible with Legacy USB function and device
分類: 標籤: , ,

HARDWARE

Bus Type: PCI Express x4
Card Type: Low Profile (SP bracket incl.)
Chipset ID: ASMedia – ASM3142
Industry Standards:
PCI Express Base 3.0 Specification
Interface: USB 3.2 Gen2 x1
Port Style: Integrated on Card
Port Numbers: 2

PERFORMANCE

Maximum Data Transfer Rate: 10 Gbps
Type and Rate: USB 3.2 Gen2 x1 10 Gbit/s
UASP Support: Yes

CONNECTOR(S)

1 x PCI Express x2 Male
1 x USB 3.2 Type-A Female
1 x USB 3.2 Type-C Female
1 x SATA (15 pin, Power)

System Requirements

Windows®  7, 8, 8.1, 10,11
Mac OS® 10.4 to 10.10
Linux  LTS Versions Only

ENVIRONMENTAL

Humidity: 5~85% RH
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -20°C to 85°C (-4°F to 185°F)

Certification

CE、FCC、RoHS、REACH
